4G_GW 閘道器

網通設備

工業級4G路由器/閘道器

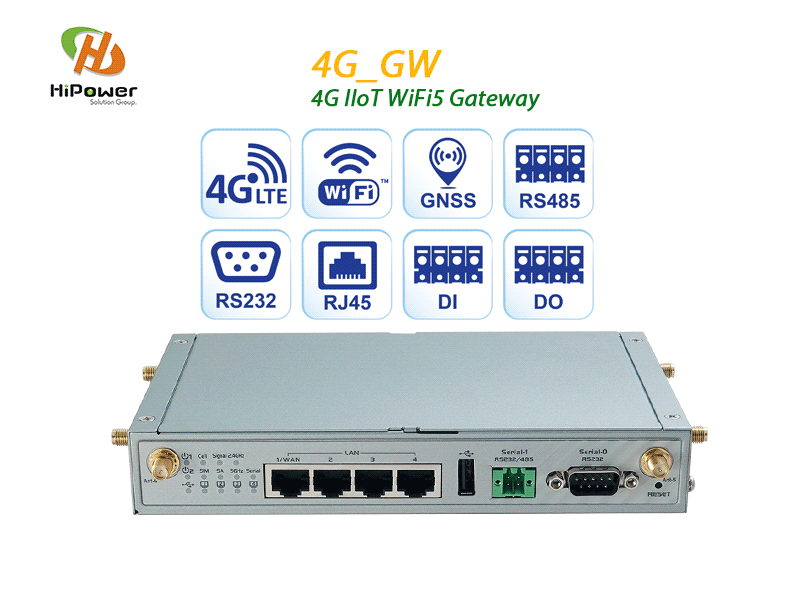

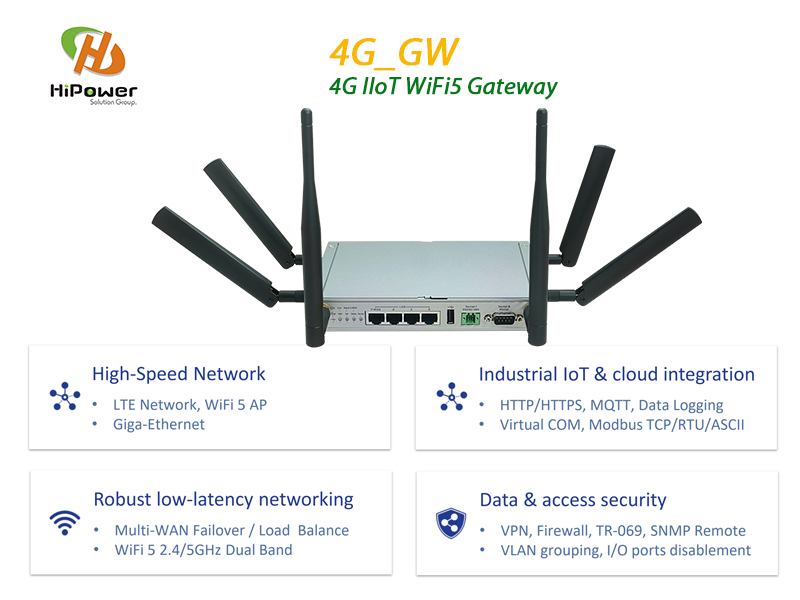

〉4G_GW is LTE/4G based industry gateway for IIoT telemetry of SCADA system. With Cellular WAN, it is nongeographic limit and can install at instant. With four GbEs, it can connect to more network devices in application. It can also configure one port as fail over Ether-WAN for reliable dual-WAN scenario. With one serial and one I/O interface, it can connect to more legacy serial devices, sensors and relay output to control device. USB storage based data logging function can store serial and D/I data for non-broken or scheduling transfer. WiFi 5 AP function allows multiple wireless field device to connect in or local IT staff easy administration
〉Dual SIM LTE , 1*Ethernet WAN
〉4*10/100/1000 Ethernet, WiFi5 DBDC 2T2R
〉1*RS232 Full + 1*RS232 Lite/485,1*DI+1*DO
〉1*USB 2.0, 1*GNSS
〉Metal Housing, DIN-Rail / Bracket
〉DC TB Dual 9~36V , -30°C ~ 70°C

型號: 4G_GW

類別: 網通設備

標籤: 工業級4G路由器, Gateway, 閘道器,Industrie Router

VPN Tunneling: IPSec, OpenVPN, PPTP, L2TP, GRE
Scenario: Site/Host to Site/host, Dynamic VPN
VPN Capability: IPSec: up to 8 tunnels
Firewall: SPI Firewall with Stealth Mode, IPS
Access Control: Packet Filter, URL Blocking, MAC Control

Applications：
IIoT/AIoT and networking System cloud integration Smart City and ITS Remote monitoring IT Machine

Device Interface 4G Module Ethernet WiFi Field Bus Log Storage I/O: Power Input Antenna Con.
1*4G, 2*mini-SIM (2FF), with GNSS 4*RJ45 GE Ports 1*2x2 2.4GHz 802.11 b/g/n , 1*2x2 5GHz 802.11ac 1*RS232(Full/DB9) + 1*RS-232(Lite)/485 (Terminal Block) 1*USB 2.0 Type-A 1*DI (Isolated, “Logic 0”: 0~2V, “Logic 1”: 5V~30V)
1*DO (Relayed Output, 30V/1A for each port)		 1* DC 9V ~ 36V (Terminal Block) 2*SMA (F)-4G, 2*SMA (M)-WiFi, 1*SMA(F)-GNSS
WAN & Uplink WAN Cellular Ether-WAN Network Monitor Standard Mode Functions Service
Cellular & Config. Ether-WAN; Failover, Load Balance 5G/4G, SA/NSA, IP Pass-through, IPv4/6 Dynamic IP, Static IP, PPPoE , PPTP, L2TP ICMP/DNS Query Standard: 802.11 Industry Compliance AP Router Multi-SSID, WMM WEP, WPA,WPA2, WPA3, WPA-PSK, WPA2-PSK, 802.1x
WiFi Mode Functions Security LAN & VLAN IPv6 Port Forward Routing OP/Storage Temp. Dimension

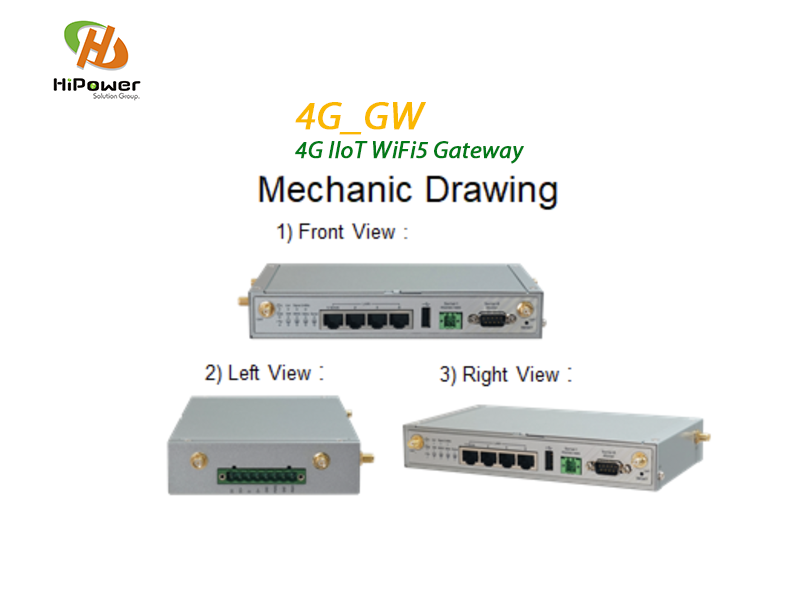

Standard: 802.11 Industry Compliance AP Router Multi-SSID, WMM WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x DHCP Server/Relay, Port/Tag based VLAN Static IPv6, DHCPv6 DMZ, Virtual Server & Computer, VPN Pass-through Static, Dynamic - RIP1/RIP2, OSPF, BGP -30°C ~ 70°C ; -40°C ~ 85°C 187x110x31mm (w/o mounting kit)
31x120x187mm (with DIN Rail kit)
225x110x 39mm (with Bracket kit)
  • 相關下載如下
    型錄 Download on May, 2023
