POL_16CH Pedestrian Flow Detection Management Server

Rail CMS Intelligent Rail Safety Management

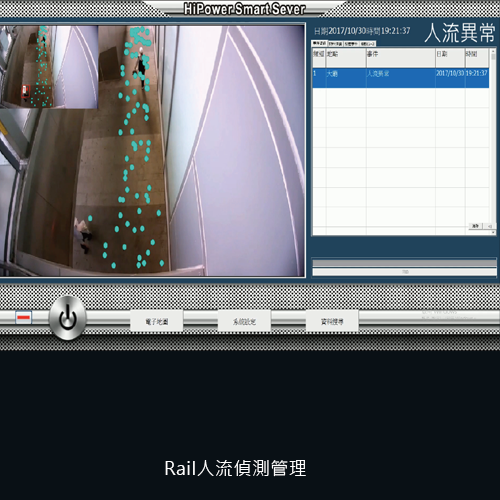

The system uses video stream input sources to set up pedestrian traffic direction detection and personnel counting statistics management. Within the detection range, it tracks the direction of pedestrian movement to provide statistics on the number of people entering and exiting. Additionally, it is equipped with AI deep learning capabilities for detecting the approximate number of people gathered in specific areas. This data can be integrated with the Crowd Management System (CMS) for comprehensive data statistics and management applications.

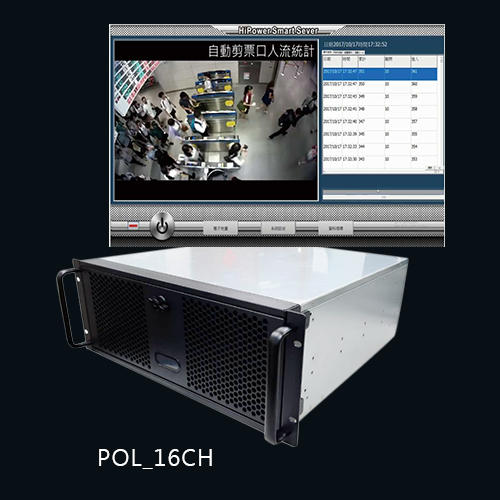

Model: POL_16CH

Category: Server

Tag: Pedestrian Flow Detection Management Server (Rail)

The system is capable of receiving RTSP video streams with a frame rate of 15fps and a minimum resolution of 720p for the cameras.
A detector can be categorized based on hardware specifications into on-site host specifications (1 channel / 4 channels) and central server specifications (8 channels / 16 channels).
It supports configuring the detection of pedestrian flow information, transmitting it to specified addresses, and offers export management functionality. Additionally, it provides API for third-party integration applications.
The detection features include settings for personnel detection, direction configuration, shoulder-to-shoulder feature filtering, and detection range planning.
It supports density statistics management of personnel count in crowded areas.
The system employs deep sort object tracking for enhanced object detection accuracy.
Object detection includes pedestrian detection, multi-person shoulder-to-shoulder detection, and pedestrian movement tracking detection. Other detection functionalities can be customized based on specific projects.
It comes with settings for detection parameters and status detection. It also allows for configuring detection ranges and personnel walking directions.
With integration with the HIPOWER backend management system platform, remote data management, retrieval queries, and system status detection notification management applications are possible.
HIPOWER offers original equipment manufacturer (OEM) technical services, providing free online system remote update services after sales.


Operating System Central Processing Unit Memory Storage Disk Controller Transmission Interface Unit Cooling Fan LCD Panel Cover Other Management Features Power Supply Casing or Enclosure
Windows Server 2019 or above, with 5 CAL licenses Intel Xeon Silver 4309Y 8-core processor x2 32GB DDR4 RAM or higher, supports up to 32 memory slots Hot-swappable SSD 600GB*3, supports up to 24 2.5-inch slots 12Gb/s SAS interface*1, supports Non-RAID or Pass Through USB 3.0 *3, built-in Micro USB management port *1, HDMI *1, 1GBase-T *2, supports up to 8 PCIe expansion slots Supports hot-swapping and redundancy Bezel with hot-swap function, operation buttons for setting management control chip IP Address, and can display system status and error information. . Wireless network connectivity
. Capable of managing server hardware, system health status, and error messages for mobile devices
. Includes KVM function for remote management		 Dual power supplies, supports hot-swapping and redundancy Standard 19-inch 2U rack-mounted server, including mounting kit
  • Related Downloads
    Catalog Download on May, 2023

Rail CMS Intelligent Rail Safety Management

Application Actual Cases

Urban Level Crossing Traffic Detection (Daytime)

 Detection and tracking of heavy traffic, pedestrians, and objects at urban level crossings during the day. Statistics on traffic flow, pedestrian crossings, vehicle passage records, and vehicle type detection at level crossings.

Urban Level Crossing Traffic Detection (Nighttime)

 Detection and tracking of heavy traffic, pedestrians, and objects at urban level crossings during the night. Statistics on traffic flow, pedestrian crossings, vehicle passage records, and vehicle type detection at level crossings.

Along-Track Level Crossing Incidents

Detection of vehicles forcibly crossing level crossings, detection of debris on level crossings, management of vehicle passage records, linked barrier gate operation status + abnormal passage event management, detection and alarm for abnormal crossing of people and vehicles at railway level crossings.

Railway Incident- Unauthorized Personnel Entry

 Using event video review to determine the cause and responsibility of accidents, assisting traffic management authorities in accident analysis and investigation, and improving traffic facilities and safety measures.

Along-Track Level Crossing Incidents - Vehicle Delay (Nighttime)

Vehicles stranded at level crossings due to accidents, vehicles waiting too long at level crossings, recording of vehicle passage.

Along-Track Level Crossing Incidents - Vehicle Delay

Vehicles stranded within the warning area, vehicles waiting too long at level crossings, management of vehicle passage records, linked barrier gate operation status + abnormal delay event management.

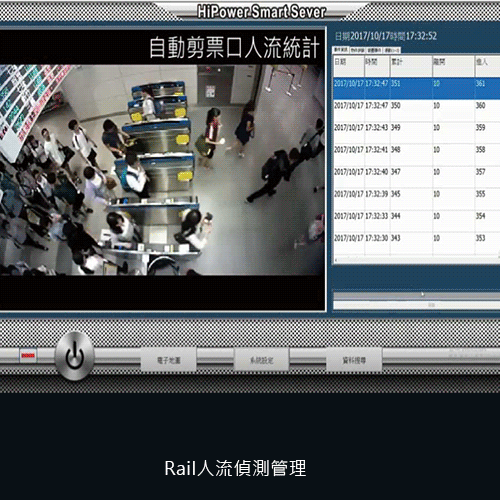

Automatic Ticket Gate - People Flow Statistics

 Establishing information on traffic flow around the station, control of vehicle drop-off delays, and the status of passenger flow at the station. This helps station management optimize front-of-station vehicle drop-off management, improve vehicle congestion, and monitor crowd flow, enhancing station safety management.

Track Safety Detection

 Detection of personnel gatherings, platform abandoned items, and personnel crossing over the platform.
